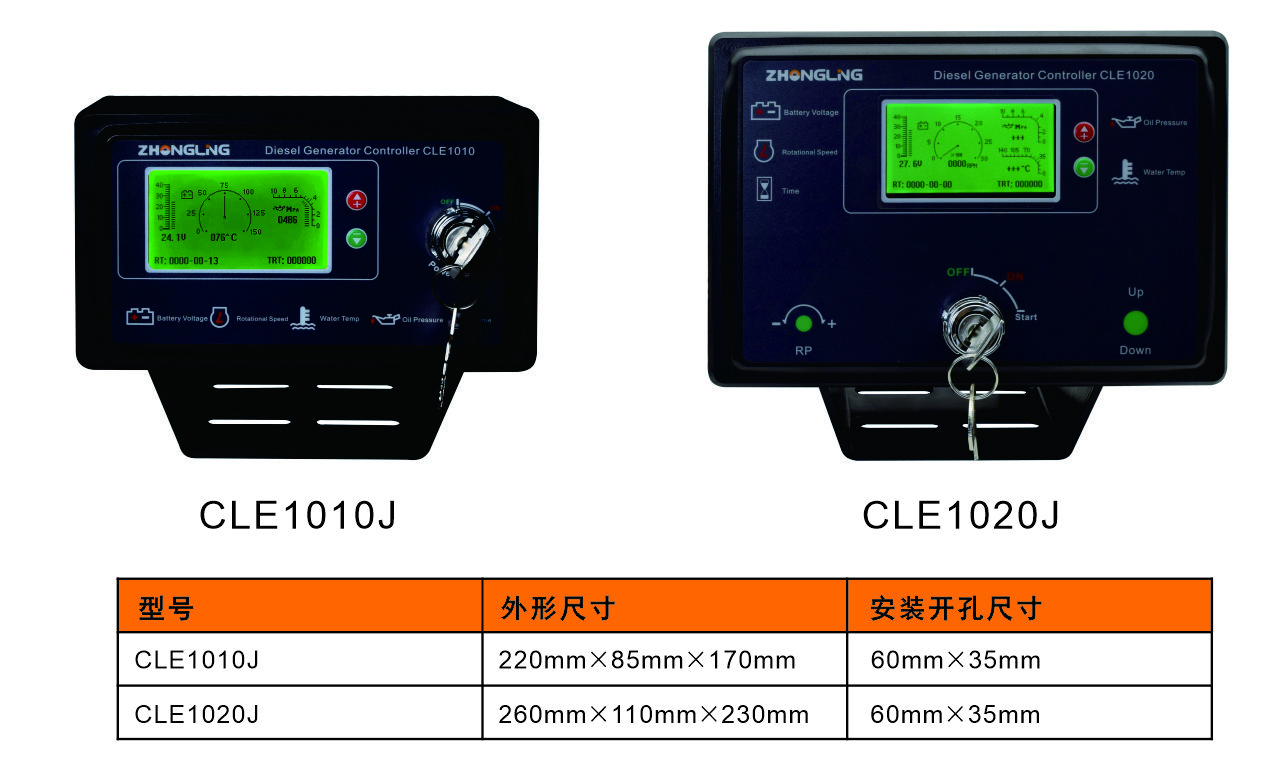

1、 Overview

The CLE1000J series engine dedicated controller adopts single-chip microcomputer control, which makes sampling more flexible and data more accurate. The controller adopts a 240128 LCD graphic display, which is easy to operate, reliable to run, and overall more beautiful.

The CLE1010J engine specific controller has water temperature, high water temperature, oil pressure, low oil pressure, and alarm functions. If equipped with a flameout, it can automatically shut down for protection.

The CLE1020J engine specific controller has functions such as water temperature, high water temperature, oil pressure, low oil pressure, speed, and protection alarm shutdown.

2、 Functional Features

240128 LCD display screen; Multiple alarm protection functions; Waterproof plug output;

3、 Parameter display

Engine speed; Engine oil pressure; Engine cooling water temperature; Battery voltage; Accumulated running time; This run time

4、 Protection function

Overspeed protection; Low oil pressure protection; High oil temperature protection; High water temperature protection; Low battery voltage display; Emergency stop

5、 Specification Description

Power supply: DC12V/DC24V;

Power consumption: MAX: 1.5W;

Alarm protection output: maximum DC7A;

Operating environment temperature: -25~65C;

Storage environment temperature: -40~85C;

Protection level: IP54 (front panel after installation)
